Horizontal Side-Entry Swing-Arm Robot

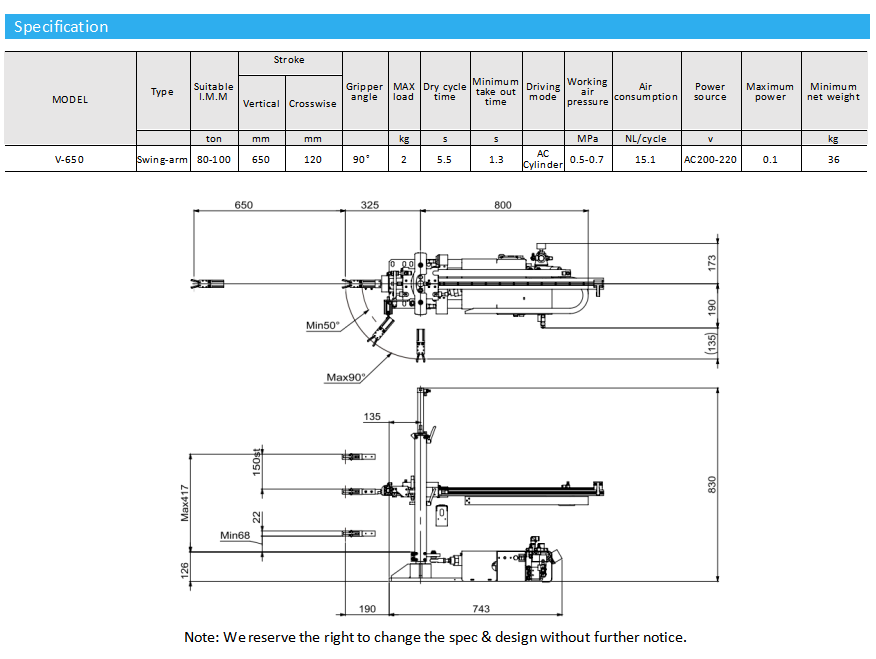

Swing-Arm Robots are extensively applied to horizontal/vertical plastic injection machines ranging from 50T~250T which can rapidly take out the runners, runner, and finished products from the mold of plastic injection molding machines, and place runners or runners into beside-the-press granulator for recycling immediately. There are two types of arms-single stage and telescopic. The vertical stroke for the single-stage is 550mm and for the telescopic is 650mm. This series is equipped with a wrist rotation mechanism and gripper sensor that can rotate products at 90°.
